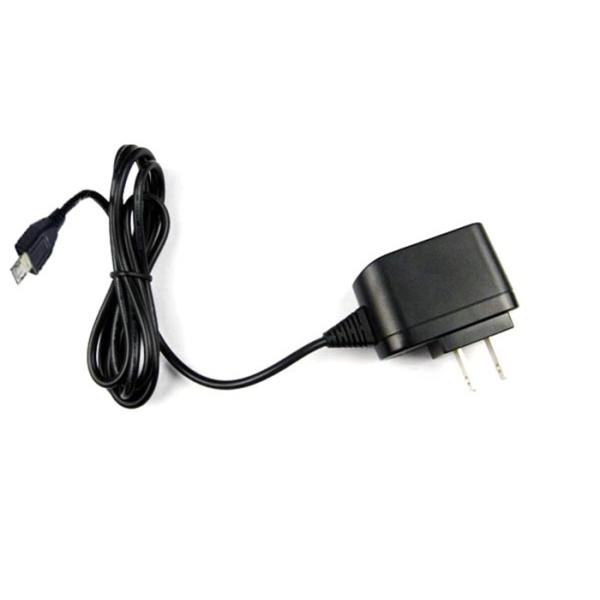

12V 3A Power Supply Charger Adapter For LED Strip Lighting / Tablet PC / Media Player

Product Categories

Phenson Lighting Tech.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : OEM

Model Number : PS-P12V3A

Certification : CE ROHS

Place of Origin : Guangzhou,Guangdong ,China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 50,000pcs

Delivery Time : 15~20days after payments

Packaging Details : PE/Polybag/White box/Blister/ Window box/Customized packaging, 15kg/carton, or as customer requirement.

Item name : PS-P12V3A

Output Power : 36W

Product : wall mounted

Workingt Voltage : 90-264V

Output Voltage : 12VDC

Output Current : 3A

The shell material : plastic

Output Type : Single

Working tempera : -25~+40℃

Input frequency : 50/ 60Hz

Energy Efficiency : Standard: Level V

Turn On Delay Time : <3S (AC:110V and full load)

Contact Now

Power Adapter 12V 3A AC DC Power Charger Adapter For LED Strip Lighting

Production Descriptions

Product parameters:

Input voltage	AC100-240V 50/60HZ
Input voltage range	90V-264V AC
Input voltage Frequency	50/60HZ
Output voltage	12V
Output current	3A
Output power	36W
AC Plug (optional)	US,3C,AU,UK,EU,KC
Output ripple and noise	100mvpp at full road with 20MHz bandwidth
Output voltage Adjustable rate	5%
No-load Power Consumption	<0.15W
Energy Efficiency Standard	Level V
Transistor connecting method	Single-ended type
Turn On Delay Time	<3S (AC:110V and full load)

Protection:
- Short-circuit protection, over-current protection & over-voltage protection
- MTBF (mean time between failures): 50,000 hours
- Warranty: 1 year
Functions:
- Energy efficiency: Ⅴ/VI
- Line regulation (full load): ≤5%
- Load regulation: ≤5%
- Ripple and noise: ≤100mV
- Hold-up time: 20ms (220V AC, typical)
- Rise time: 50ms full load (typical)
- Temperature coefficient: <±0.03%/°C
- Output voltage adjust range: ±10% (main path)
- Output overload protection: 105-250% shut down and restart
- Output overvoltage protection: 115-150% shut down and restart
- Withstand voltage: input-output 3KV AC/min, input-outside case 3KV AC/min
- Insulation resistance: ≥100MΩ (500V DC)
- Operating temperature: 0 to 45°C
Testing:
- Burn-in test: 4H x 80-100% rated load at 40 ±5 degree
- MTBF: at least 50,000 hours at 25 degree, full load.
- Height: 1m, product should be fall off on the 20mm thick hardwood
- Average fault-free times under 25° maximum working load.
- Average fault-free time 50,000 hours (as per IEC60950 standards)
Packing details:
- Free PE bag for each power adapter
- White box package: USD 0.1-0.2
- Gift box: USD 0.25 to 0.50
Delivery details:
- UPS/FedEx/DHL/by sea
- Delivery lead-time: 15 days for 3000-5000 pieces

12V 3A Power Supply Charger Adapter For LED Strip Lighting / Tablet PC / Media Player
